Non Contact Thickness Measurement Systems

Non contact thickness measurement systems for Glass, Tubing, Medical Devices, Multi-Layer Films, Contact Lenses

Non contact thickness measurement is becoming more complicated with each passing year.
From medical devices to food packaging, automotive glass, and contact lenses, we understand the needs from an array of industries to successfully design non contact thickness measurement systems to meet your needs. When our customers adopt a Lumetrics non contact thickness measurement system, they experience a significant reduction in waste, a smoother manufacturing process, a better end product, and a dramatic increase in their profit margins. Read More about our successful non contact thickness measurement applications.


Products

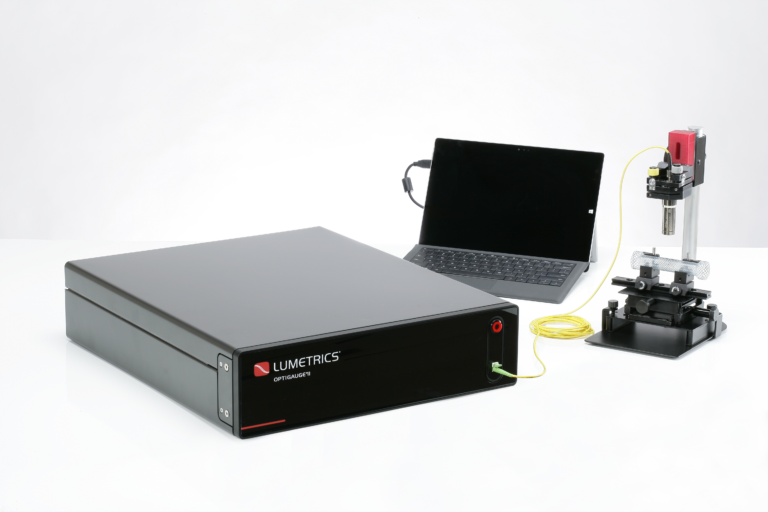

OptiGauge® II

OptiGauge® II

Offers the same precision and accuracy you have come to expect from the OptiGauge MLS and now enables you to operate the system via your own laptop or PC using an ethernet connection. This simplifies integration to your online applications, making this system ideal for OEM applications. Measurement range of 12 µm to 16 mm, with sub-micron accuracy, and the option for multiple probes.

Learn more

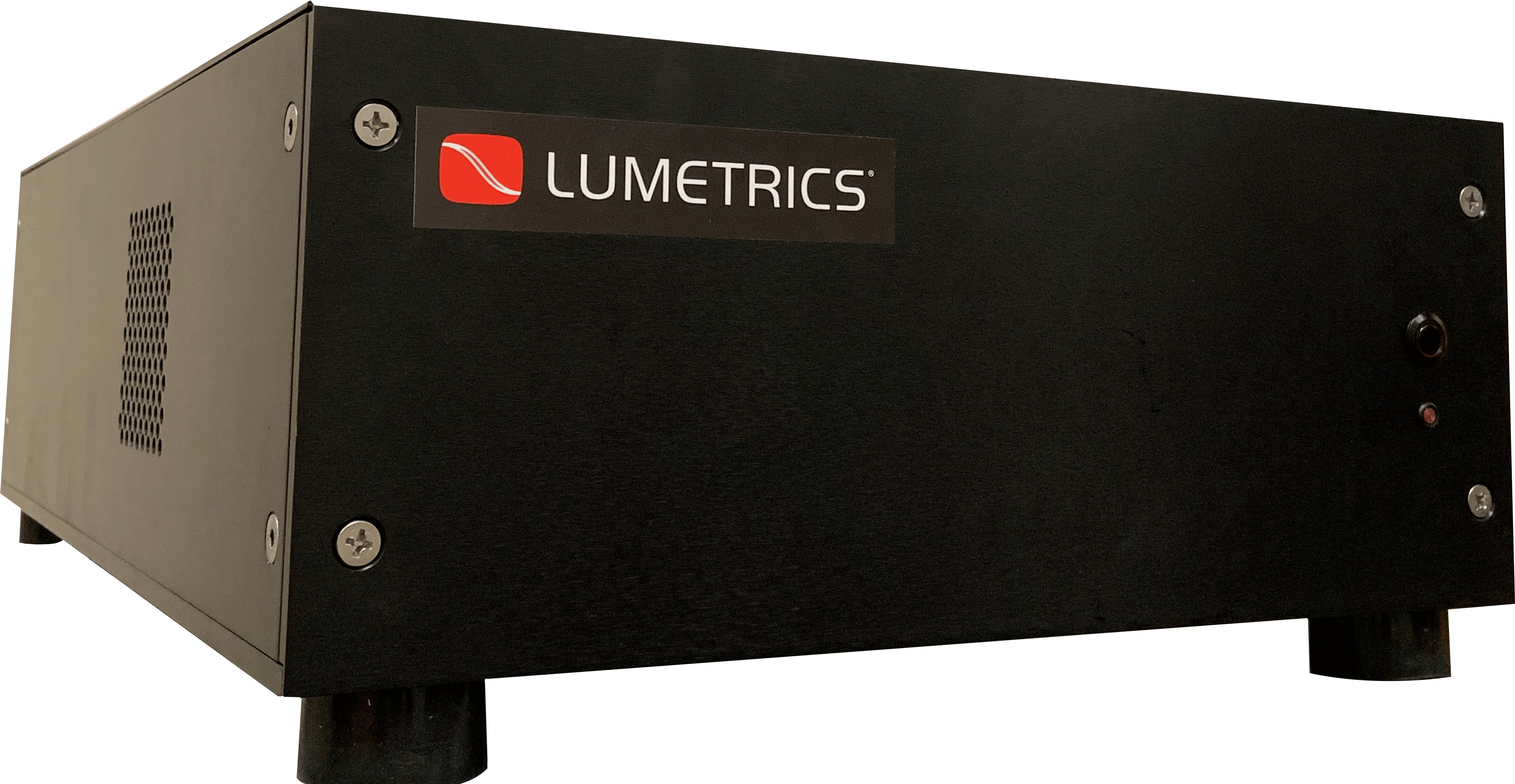

OptiGauge 2000

OptiGauge 2000

The OptiGauge 2000 is based on time-domain low-coherence interferometry. This technology enables absolute thickness measurement of any material, which is transparent or partially transparent to the measurement of light.

Learn more
OG 600

OG 600

The OG-600 instrument is based on the time-domain low-coherence interferometry. This technology enables absolute thickness measurement of any material, which is transparent or partially transparent to the measurement of light. The OG-600 uses visible light with the center wavelength of approximately 650nm.

Learn more
OptiGauge EMS

OptiGauge EMS

The OptiGauge EMS is the ideal thickness measurement system for applications that call for the widest thickness range. It is non-destructive and provides objective measurements leaving no margin for operator error. Offering a measurement range of 12 µm to 50 mm with accuracy of better than 2 µm.

Learn more

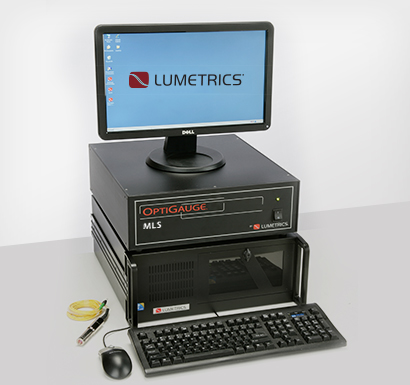

OptiGauge MLS

OptiGauge MLS

The standard OptiGauge MLS system will be available for a period of time as we begin to transition existing customers over to the new OptiGauge II non contact thickness gauge. We are sensitive to our current customers need for continuity of product supply and we realize there will be certain customers that will require the original OptiGauge MLS systems for a period of time due to process validation or other internal requirements. For these situations we encourage customers to contact Lumetrics to discuss their end-of-life needs for the OptiGauge MLS.

Learn more

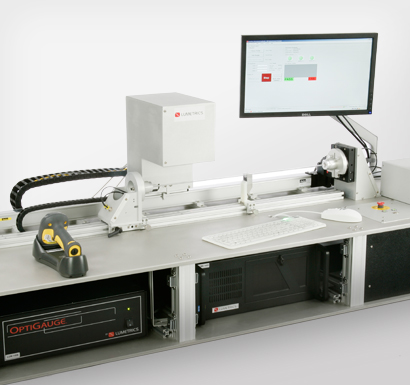

LumetriScan®

LumetriScan®

This automated non contact thickness measurement system utilizes the OptiGauge to perform thickness measurements of medical tubing and balloons up to 36” long. Provides for automated measurements based on customer determined recipes and produces full test reports for product analysis. LumetriScan can help you ensure a high-quality, consistent product, spot production defects early, and satisfy FDA compliance requirements. Offered either in 12” or 36” overall measurement range.

Learn more

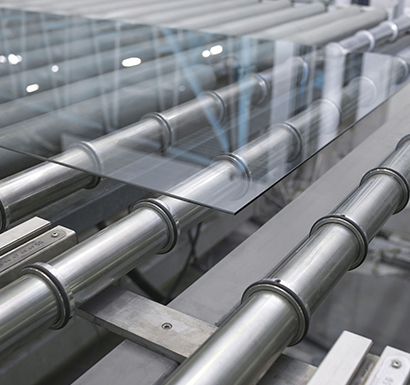

Glass Measurement Systems

Glass Measurement Systems

Tailored for the LCD market, this series of non contact thickness measurement systems for glass are built around the OptiGauge system.

Learn more
