Thickness Measurement Accessories

Add Functionality to Your Measurement System

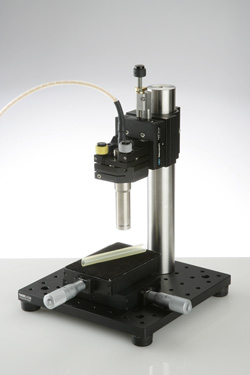

No two customers are alike, which is why we offer a wide range of accessories for you to choose from to add functionality to your base system. Lumetrics provides standard and customized fixtures for all applications. Our Applications Engineers can work with you to determine your needs, then design the correct fixture for the application.

Maximize your gauge with our measurement accessories:

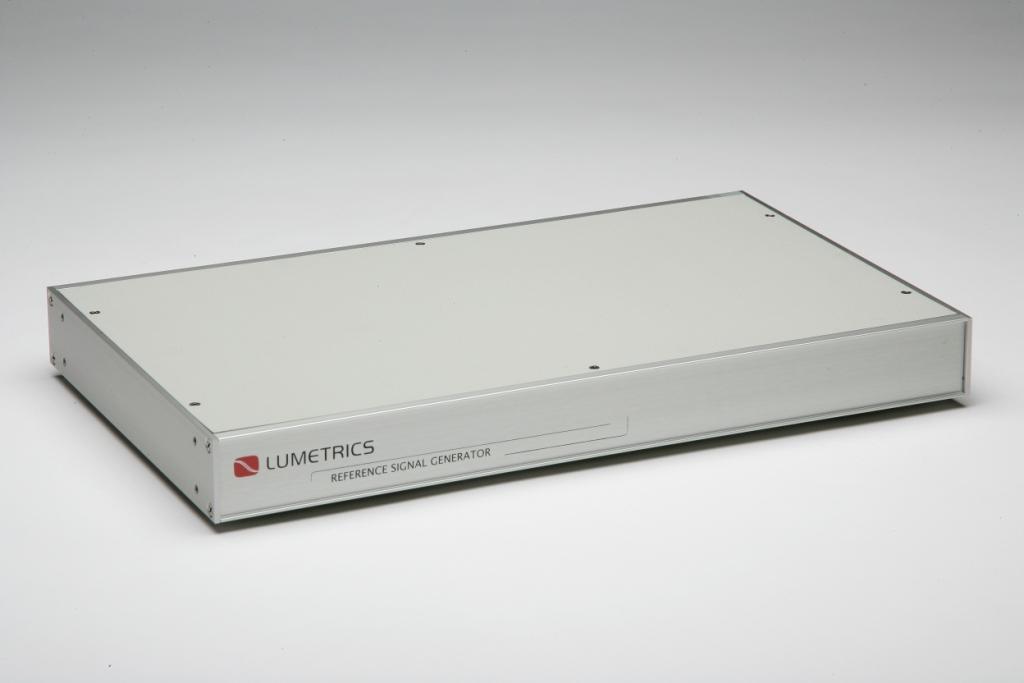

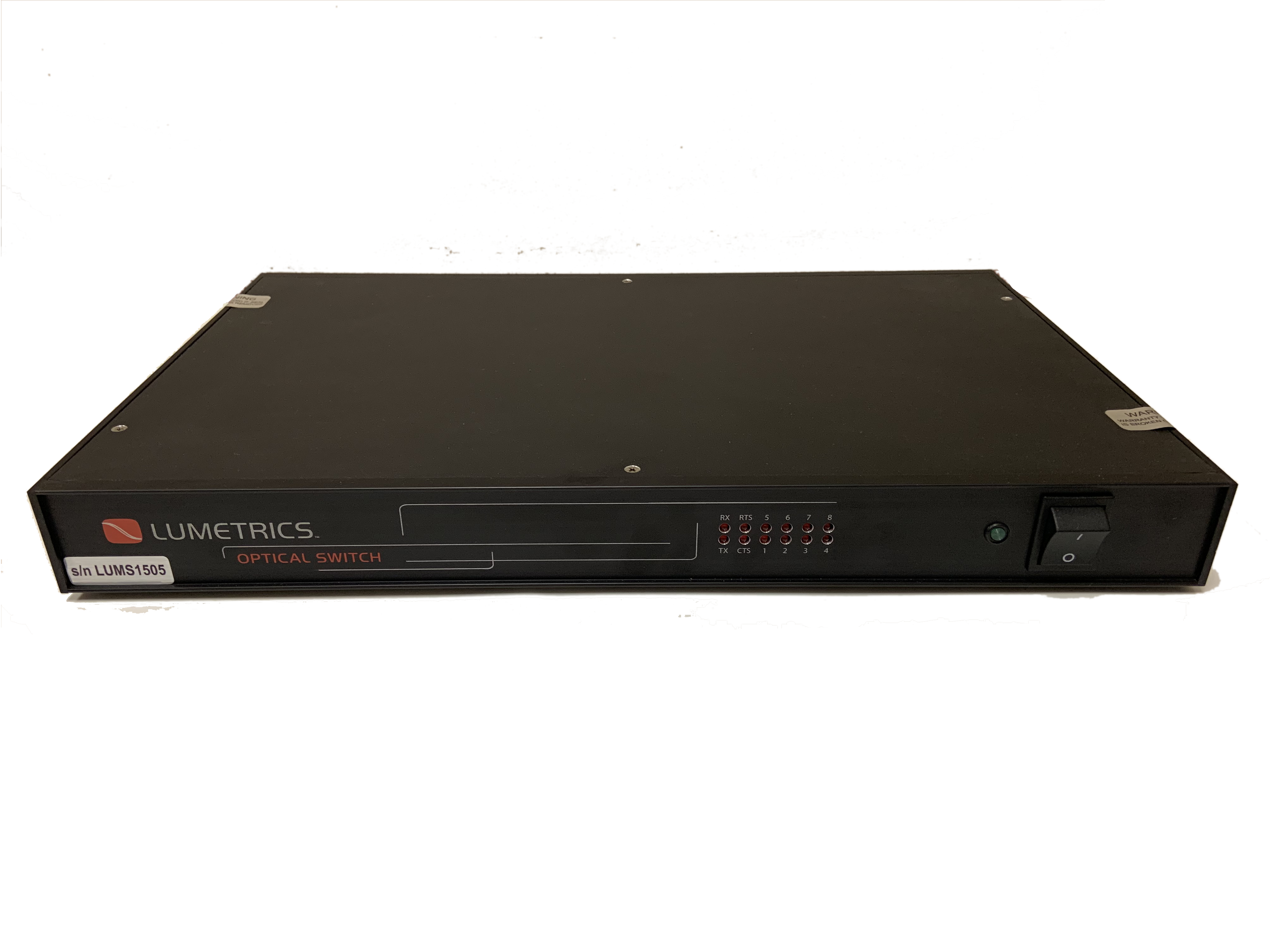

  • Signal generators, switches, + stages

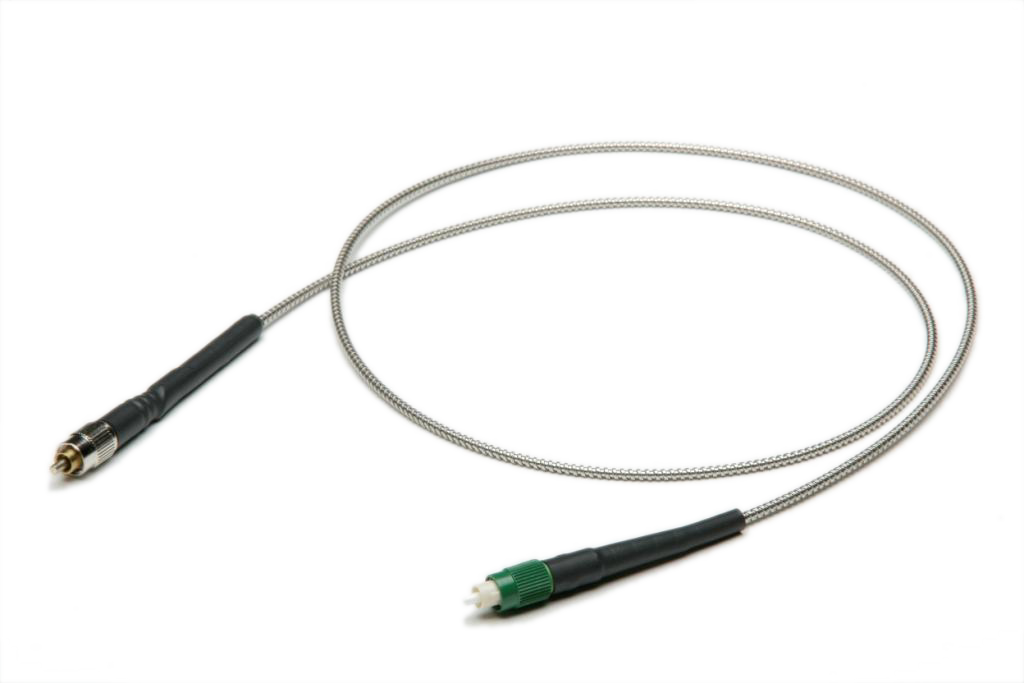

  • Optical probes + cables



Need a custom solution?

Work directly with our engineers to develop a system that is designed around your custom requirements.

Talk to an Engineer

Probe + Cable Resources

Angular Tolerances | Spot Sizes | Depth of Focus

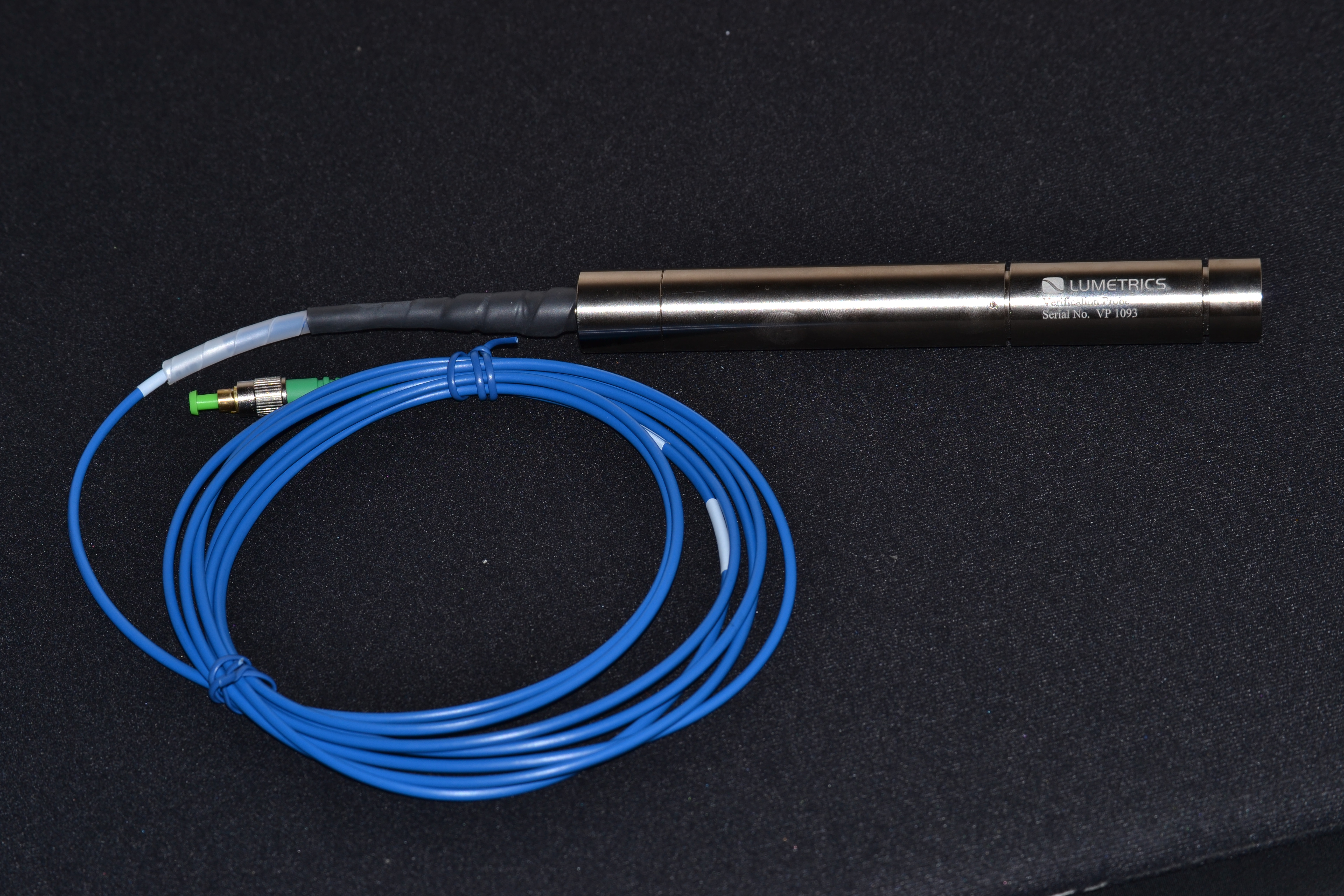

Measurement Probes

Probes and cables sold separately

  OptiGauge II
Optical Probe 50 mm
Working distance 49 mm
Measurable spot size 40 microns
Angular tolerance +- 2 degrees
Optical fiber length* 3 m standard, up to 1000 m
Optical Probe 25 mm
Working distance 20 mm
Measurable spot size 40 microns
Angular tolerance +- 3.5 degrees
Optical fiber length* 3 m standard, up to 1000 m
Optical Probe 25 mm HNA
Working distance 21 mm
Measurable spot size 10 microns
Angular tolerance +- 8.5 degrees
Optical fiber length* 3 m standard, up to 1000 m
Optical Probe 100 mm
Working distance 91 mm
Measurable spot size 80 microns
Angular tolerance +- 1 degree
Optical fiber length* 3 m standard, up to 1000 m

Find the best fit accessory

Talk with our engineers to determine which accessories are right for your system.
